Roll-Forming Automation

Dual-X Gauging

Patented gauge adjustment on both axes, following the forming angle.

Equipment supplied · Auto-Form module

Request a quotation

Purlin roll-forming line with Dual-X gauging and servo-driven carriage

How to access this technology

Equipment supplied · Auto-Form module

Supplied as a module of the Auto-Form CEE/ZEE Pro purlin line, or integrated into an existing roll-forming line. We develop, prove and supply the equipment directly or through manufacturing partners in your region.

Request a quotation We invent and build

Overview

Multi-directional roller clearance control that adjusts vertically and horizontally at each roller's forming angle, for consistently superior purlin quality across gauge variations.

Traditional auto-gauging systems adjust only vertically. Dual-X Gauging is patented technology that adjusts simultaneously on both the vertical and horizontal axes at each roller’s forming angle, keeping roller alignment within the tooling centreline radii regardless of material thickness.

The system automatically calculates and applies the correct adjustment angle for any purlin profile, maintaining optimal roller-to-material contact throughout the forming process — addressing limitations that have constrained purlin roll forming for decades.

longer tooling life: 35%
shorter setup times: 60%
less surface scuffing: 90%

Features

Engineered capability.

01
Multi-directional roller clearance control
Both vertical and horizontal clearance adjustment between rollers.
02
Angle-following adjustment
Adjustment is synchronised to follow the forming angle automatically.
03
Form angle compensation
Lifts rollers at the precise half-angle for optimal contact.
04
Automatic synchronisation
Calculates and applies the correct adjustment angle for any purlin profile.

Auto-Form CEE/ZEE Pro — automated modules in production sequence, coil to packaged bundle

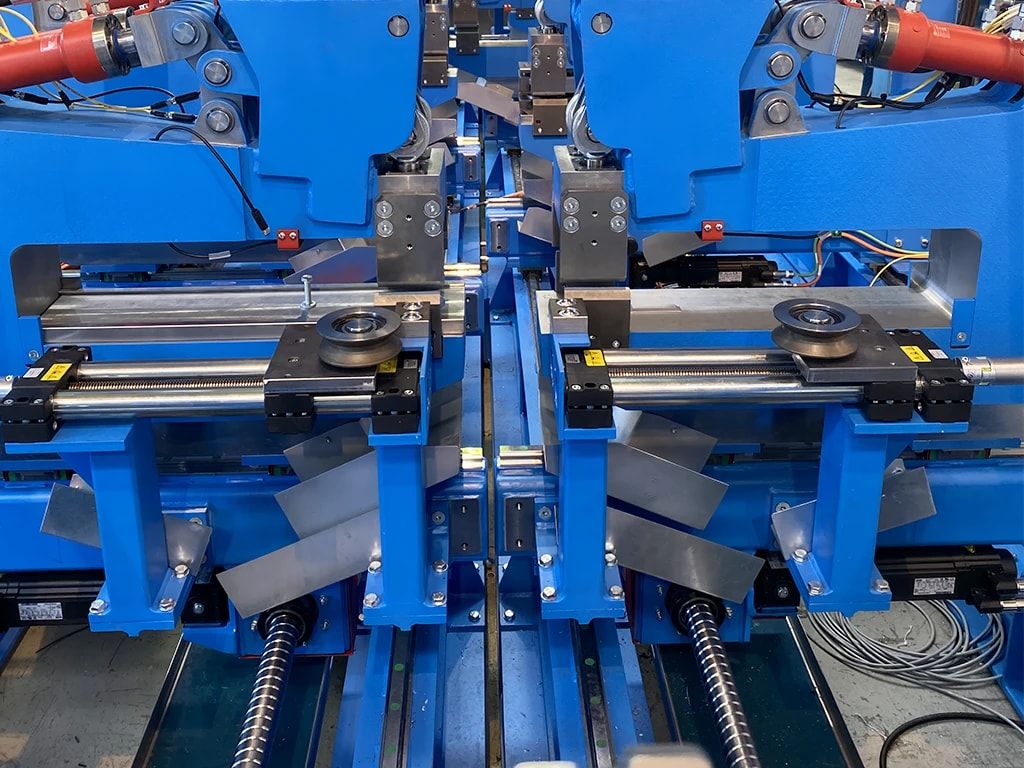

Dual-X gauging roll stations on a purlin line — Dual-axis adjustment at every forming station.

Benefits

What it delivers.

01
Extended tooling life
35% extension in tooling life through optimal pressure.
02
Reduced setup time
60% reduction in setup times with automatic compensation.
03
Improved material quality
90% reduction in scuffing through optimised roller contact.
04
Production efficiency
25–35% improvement in production efficiency and consistency.
